General Purpose Model



　　This system measures electro characteristic of OPC drum.
　　We provide various models for each use.


CYNTHIA91
This is the automatic measurement system.
We have achieved stage accuracy ±20μ shorter. It is possible to set the angle each 1°
by manual to be equipped with the circle control board.


Spec
Drum size: φ20 to 120mm
　　　　　　　 L230 to 410mm（500mm max）
Automatic stage
　　Resolution: 10μ
　　Accutacy: ±20μ
Rotation speed: 200RPM
Light source: Halogen lamp sigle wavelength; POLAS_23
　　　　　　　　 　Halogen spectral light source; POLAS_39
　　　　　　　　 　Xenon lamp spectral light source; POLAS_41







CYNTHIA92

Developed of CYNTHIA91!The stage is changed to air push.
The structure and operation is so simple!You can easily change the drum size by changing the chuck.


Spec
Drum size: φ20〜120mm
　　　　　　　 L230〜410mm（500mm max)
Air push stage
Rotation speed: 200RPM
Light source: Halogen lamp sigle wavelenrth; POLAS_23
　　　　　　　　　 Halogen spectral light source; POLAS_39
　　　　　　　　 　Xenon lamp spectral light source; POLAS_41









CYNTHIA94
Simplifying the set up, and also the setting space is smaller by unifying separate scanner and controller into one! Beforehand, it contains necessary minimum things for the measurement.


Spec
Unifying model
Drum size: φ20〜60mm
　　　　　　　　L 230〜410mm
Air push stage
Angle: Setting screw hole each 15°
Rotation speed: 180RPM
Light source: Halogen lamp sigle wavelength; POLAS_94

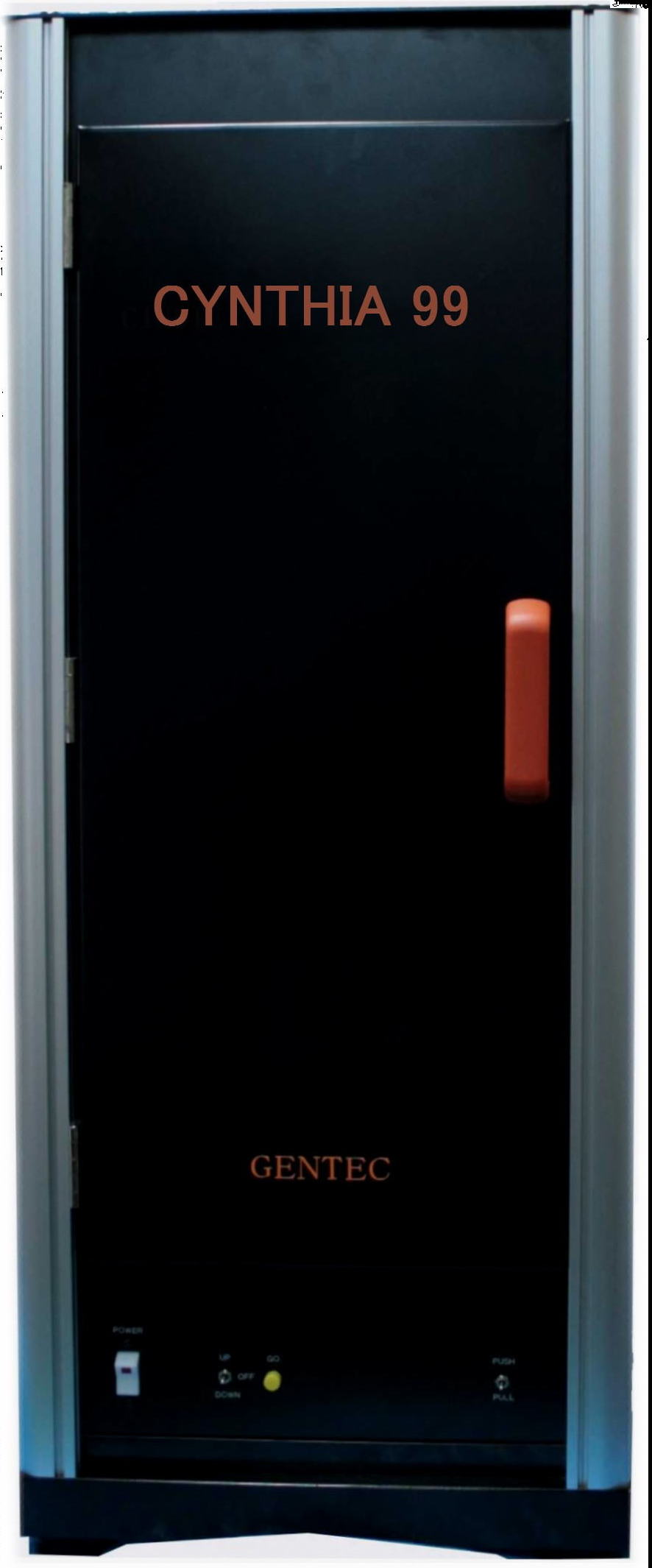

CYNTHIA99
It is possible to be high cost performance by simplifying the function.
Designing smaller, so it doesn’t need wide space.<W400 D500 H1200>


Spec
High cost performance model
Drum size: φ20〜60mm　
　　　　　　　　 L230〜380mm
High voltage power supply
　　Wire: ＋/−6,500V　FIX
　　Grid: 0〜±1,000V　AMP
Air push stage
Angle: Setting screw hole each 90°
　 　　　 （Each 30°is possible.）
Rotation speed: 120RPM
Light source: LED; RODEX
　　Wavelength;780nm or 625nm
　　Uniformity: 3% shorter
