　　Light source is an important parameter in the measurement.

　　We have adapted special 2 branches optical fiber to make strength be steady.

　　Therefore, the uniformity of exposure is 5% shorter!

　　Basically adopting halogen or xenon lamp, we provide laser diode and LED model too.

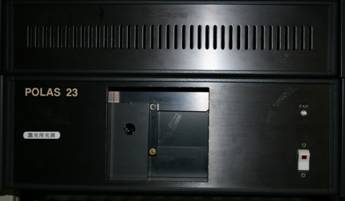

POLAS23

You can use optically wavelength from 500 to 950nm by changing BPF.
Adopting non-step disk type for NDF can be controlled on-line.

Spec

Single wavelength

Halogen lamp：150W

BPF：cassette type
　　　　 1 piece

NDF：non-step variable automatic control
　　　　 1 disk

Light guide：2 branches glass fiber

POLAS39

Standard 11 sheets BPF can be controlled on-line.
You can use optically wavelength from 500 to 950nm by changing BPF.
Adopting non-step disk type for NDF set 2 stages.

Spec

Spectral

Halogen lamp：150W

BPF：automatic control
　　　　　Standard 11 pieces contained
　　　　　(Adding maximum 19 pieces are possible)

NDF：non-step variable automatic control
　　　　　2 disks

Light guide：2 branches glass fiber

POLAS41
Standard 12 sheets BPF can be controlled on-line.
You can use optically wavelength from 400 to 900nm by changing BPF.
Adopting non-step disk type for NDF set 2 stages.

Spec

Spectral

Xenon lamp：150W

BPF：Standard 12 pieces contained
　　　　　(Adding maximum 19 pieces are possible)

NDF：non-step variable automatic control
　　　　　2 disks

Light guide：2 branches glass fiber

POLAS_LD
Now, we arrange to make for each customer's order.
Please contact us.

Spec

Laser diode

Wavelength：780nm/650nm and so on

RODEX
This is the exposure by LED light source.
The uniformity keeps 3% shorter!

Spec

LED light source

Low distortion

Wavelength：780nm/625nm/580nm/405nm
