High Voltage Power Supply







  Our power supplies are high cost performance!
  We provide various models for each use.




COTOMIC33
High output model:COTOMIC33P
GENTEC's standard power supply.

Spec
For scorotron grid
Range:0〜±1KV
Current:Standard model 0.5mA
       High output model 3mA






COTOMIC44
High output model:COTOMIC44P
USB date capture model:COTOMIC44U

Containing drum current detection! USB remote control is possible!


Spec
For scorotron
Range:Main(Wire) 0〜±7.5KV
      Grid 0〜±1KV
Current:Standard model 0.5mA
      High output model 3mA

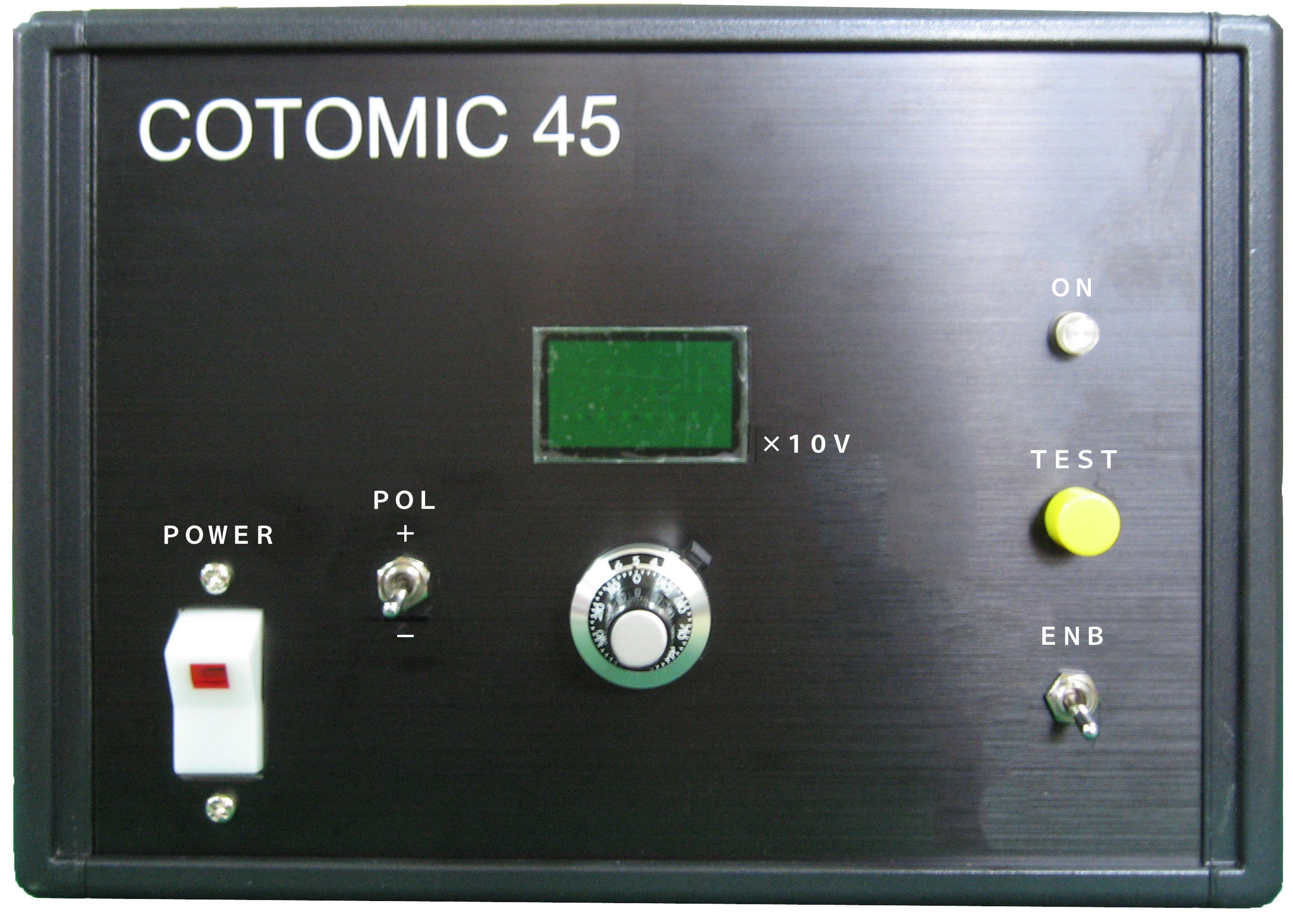

COTOMIC45
Alternative model of COTOMIC32(out of production)!

Spec
For corotron
Range:0〜±7KV
Current:Standard model 0.5mA
       High output model 3mA

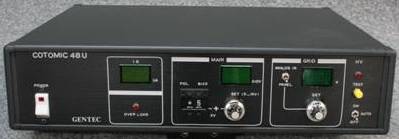

COTOMIC48
High output model:COTOMIC48P
USB date capture model:COTOMIC48U

Adopting new circuit, it made the function simplify,
so the arrival of a new type of low price model!


Spec

For scorotron
Range:Main(Wire) ±4KV〜8KV
      Grid 0〜±1KV
Current:Standard model 0.5mA
       High output model 3mA

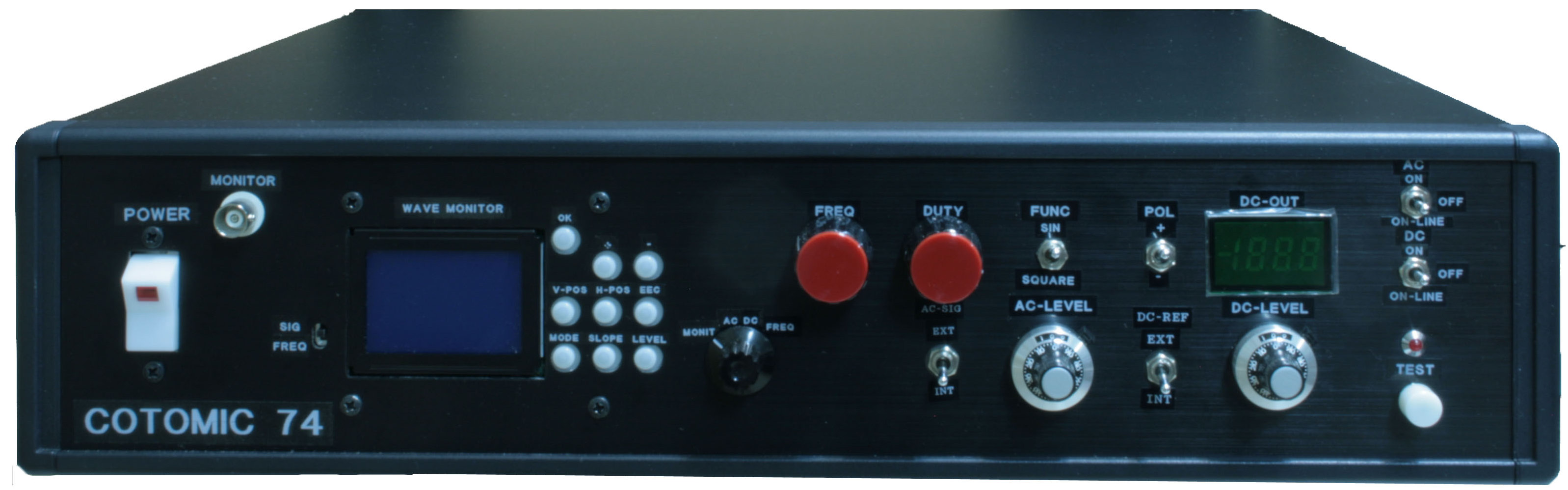

COTOMIC74
Containing wave form monitor oscilloscope!

  Spec

For charge roller
  Range:DC 0〜±2KV
        AC 4KV P−P
           Frequency:Variable 1KHz〜6KHz
           Wave form:Sine wave/Square wave
            (Square wave duty:Variable 30%〜70%)
