Electrostatic Volt meter


　　

　　

　　Adopting high voltage feedback method! Interval dependence is very small!

　　Using small probe; 6mm×6mm×50 or 10mm×10mm×40.

　　We provide various models for each use.



CATE751
Other models：CATE751M、CATE751H

Simple！Conpact！
This Volt meter is high cost performance.


W200 H49 D210mm
 Spec
Personal Volt meter
Range：±1200V
　　　　　CATE751M：±1500V
　　　　　CATE751H：±2000V
Response Speed：12msec shorter
Accuracy：±0.2%

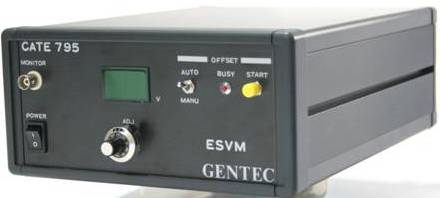

CATE795
USB date capture madel：CATE795U

Newest model！
Response speed is faster and noise is lower.

CATE795 contains ADC,
so date capture can be easy from the USB interface by your computer.
Spec
Multi Volt Meter
Range：±1000V
Response Speed：5msec shoter
Accuracy：±0.015%
W210 H100 D280mm






CATE797
USB date capture madel：CATE797U

Following CATE795,
volt meter becomes high performance, and has multi channel besides!
CATE797 contains maximum 4 channels in one unit.

W430 H100 D350mm		 Spec
4channels multi volt meter
Range：±1000V
Response Speed：5msec shoter
Accuracy：±0.025%
