X-TOF


　　Xero graphy Time Of Flight

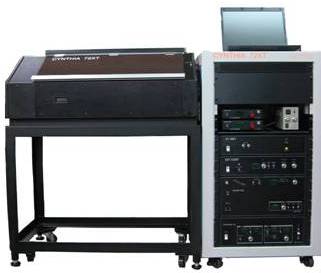

　CYNTHIA72
　　　 This is the special system for Xerography Time of Flight by induced current high speed volt meter.
　 Even though it is induced current probe, the measurement of surface potential is absolute value.
　 It has the function of high speed rotation and capacitance measurement is possible!



Spec
For Xerography Time of Flight
High speed volt meter
　　　　 Responce speed: 50μsec shorter
Measurement of absolute value
Option: capacitance measurement is possible
Range: ±1000V
Pulse exposure
　　　　　Pulse width: 3μsec shorter
Light source: LED
Drum size
　　　　　 φ20〜60mm
　　　　　　L230〜410mm　
